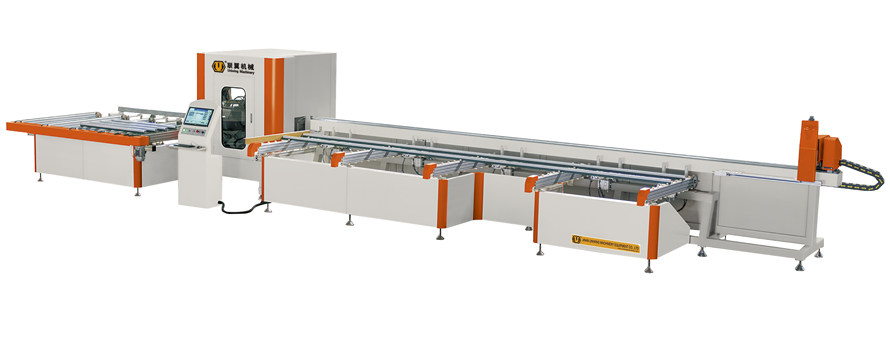

CNC Cutting Center For Aluminum Profile LJMC07-CNC-6000

Article author:Jinan Uniwing Machinery Equipment Co.,Ltd Number of readers:Frequency


This machine is designed for high efective cutting  of aluminum  profile at 45°


Worktable auto continuous feeding and clamping  profile

It adopts high precision straight guide rail pair to ensure stability and reliable operation

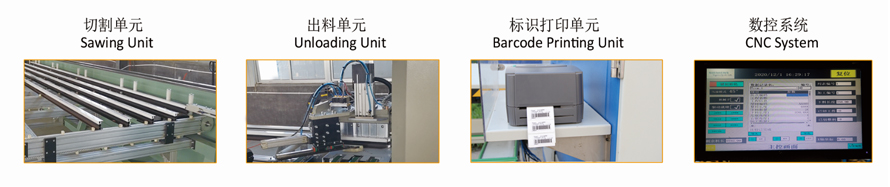

It equipped with  chip removal device to discharge the material and aluminum chips

Mechanical arm adopts Siemens servo drive. Imported high precision gear rack drive to ensure reliable feeding

Blade connected with imported motor. Cut smooth, steady and high precision

Totally enclosed safety cover to ensure personal security

Option: Material lifting platform for saving manpower

Option: Bar code printer for E-works


Input Voltage     380V 50HZ

Input Power      6KW

Air Pressure      0.5~0.8MPa

Air Consumption  600L/mi

Motor Speed        2800r/min

Max.Cutting Length  6000mm

Min.Cutting Length   180mm

Max.Cutting Range  120mm×120mm

Saw Blade Specification    φ500mm×4.3mm×φ30mm Z=120

Overall Dimension         16000mm×2600mm×2500 mm

Weihgt                   4000kg
